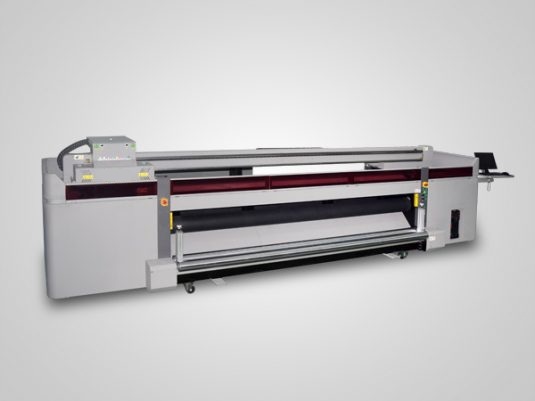

MB-R3200KJ
| Model | MB-R3200KJ | ||
| Print head | Kyocera KJ4A grey level piezo print head | ||
| Number of heads |
2-8pcs (4-7 colors optional) | ||
| Print resolution |
600x2400dpi | ||
| Print speed | 4 Pass | 6 Pass | 8 Pass |
| 350m2/h (single row); 100m2/h (double row) |
70m2/h (single row); 35m2/h (double row) |
29m2/h (single row); 58m2/h (double row) |
|
| Print width | 3200mm | ||
| Material type | roll to roll material | ||
| Material thickness |
Up to 50mm | ||
| Ink type | Eco-friendly UV curing ink (NO VOC), Disperse (Optional) | ||
| Ink color | CMYK, Lc, Lm, W (Optional) | ||
| RIP Software | PhotoPrint | ||
| Input format | PDF, JPEG, TIFF, EPS, AI | ||
| Printer weight | 2300 KG | ||
| Printer Size | 6600mm[L] x 1500mm[W] x 1600mm[H] | ||
| Power requirement |
220V/AC (± 10%), 50/60 Hz; 6 KW | ||
| Working environment |
Separate, little sunlight, ventilated workshop. |
|

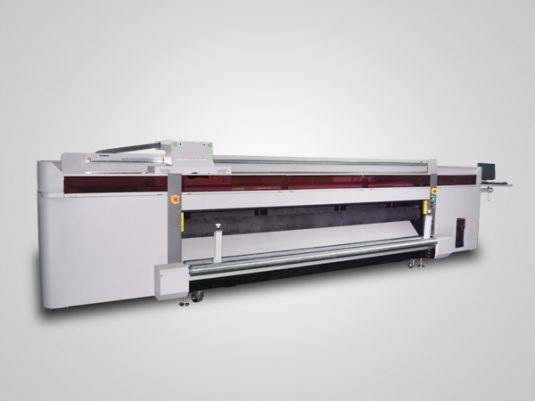

MB-R3200R5
| Model | MB-R3200R5 | ||
| Print head | Ricoh-Gen 5 grey level piezo print head | ||
| Number of heads |
2-8pcs (4-8 colors optional) | ||
| Print resolution |
600x2400dpi | ||
| Print speed | 4 Pass | 6 Pass | 8 Pass |
| 38m2/h (single row); 76m2/h (double row) |
29m2/h (single row); 58m2/h (double row) |
22m2/h (single row); 44m2/h (double row) |
|
| Print width | 3200mm | ||
| Material type | roll to roll material | ||
| Material thickness |
Up to 50mm | ||
| Ink type | Eco-friendly UV curing ink (NO VOC), Disperse (Optional) | ||
| Ink color | CMYK, Lc, Lm, W, V (Optional) | ||
| RIP Software | PhotoPrint | ||
| Input format | PDF, JPEG, TIFF, EPS, AI | ||
| Printer weight | 2300 KG | ||
| Printer Size | 6600mm[L] x 1500mm[W] x 1600mm[H] | ||
| Power requirement |
220V/AC (± 10%), 50/60 Hz; 6 KW | ||
| Working environment |
Separate, little sunlight, ventilated workshop. Temperature: 18°C ~ 30°C Humidity: 30% ~ 70% (Non-condensing) Ventilation equipment: Suggest Overhead exhaust fan, displacement 600cfm |
