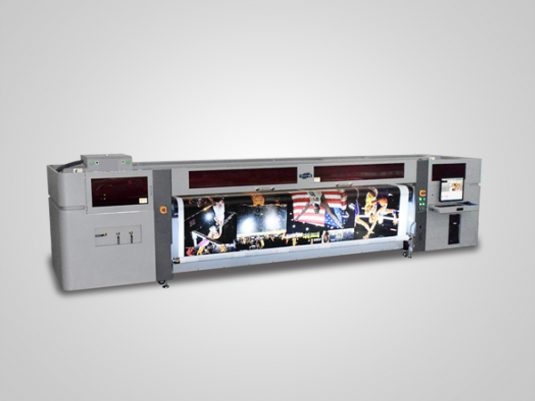

MB-H3200KJ
| Model | MB-H3200KJ | ||
| Print head | Kyocera KJ4A grey level piezo print head | ||
| Number of heads |
2-8pcs (4-7 colors optional) | ||
| Print resolution |
635x2400dpi | ||
| Print speed | 4 Pass | 6 Pass | 8 Pass |
| 50m2/h (single row); 100m2/h (double row) |
35m2/h (single row); 70m2/h (double row) |
29m2/h (single row); 58m2/h (double row) |
|
| Print width | 3200mm | ||
| Material type | Rigid and flexible material, roll to roll material | ||
| Material thickness |
Up to 50mm | ||
| Ink type | Eco-friendly UV curing ink (NO VOC) | ||
| Ink color | CMYK, Lc, Lm, W (Optional) | ||
| RIP Software | PhotoPrint, Onyx | ||
| Input format | Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI | ||
| Printer weight | 2050 KG | ||
| Printer Size | 5800mm[L] x 1550mm[W] x 1500mm[H] | ||
| Power requirement |
220V/AC (± 10%), 50/60 Hz; 5 KW | ||
| Working environment |
Separate, little sunlight, ventilated workshop. Temperature: 18°C ~ 30°C Humidity: 30% ~ 70% (Non-condensing) Ventilation equipment: Suggest Overhead exhaust fan, displacement 600cfm |

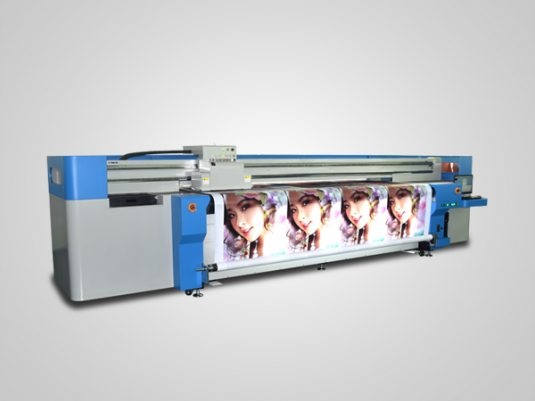

MB-H3200R5
| Model | MB-H3200R5 | ||
| Print head | Ricoh-Gen 5 grey level piezo print head | ||
| Number of heads |
2-12pcs (4-8 colors optional) | ||
| Print resolution |
600x2400dpi | ||
| Print speed | High speed mode | Normal Mode | High resolution mode |
| 38m2/h (single row); 76m2/h (double row) |
29m2/h (single row); 58m2/h (double row) |
22m2/h (single row); 44m2/h (double row) |
|
| Print width | 3200mm | ||
| Material type | Rigid and flexible material, flat and roll to roll material | ||
| Material thickness |
Up to 50mm | ||
| Ink type | Eco-friendly UV curing ink (NO VOC) | ||
| Ink color | CMYK, Lc, Lm, W, V (Optional) | ||
| RIP Software | PhotoPrint, Onyx | ||
| Input format | Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI | ||
| Printer weight | 2150 KG | ||
| Printer Size | 5800mm[L] x 1580mm[W] x 1530mm[H] | ||
| Power requirement |
220V/AC (± 10%), 50/60 Hz; 8.5 KW (38A) | ||
| Working environment |
Separate, little sunlight, ventilated workshop. Temperature: 18°C ~ 30°C Humidity: 30% ~ 70% (Non-condensing) Ventilation equipment: Suggest Overhead exhaust fan, displacement 600cfm |

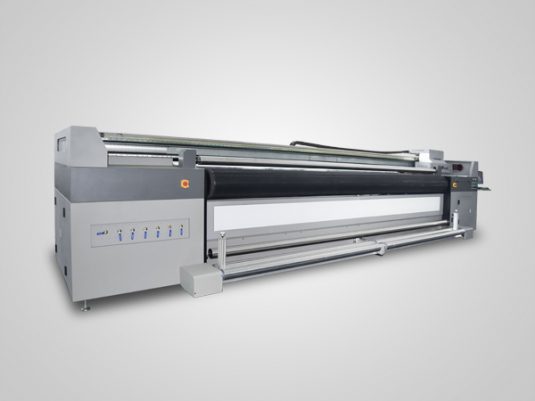

MB-H5000KJ
| Model | MB-H5000KJ | ||
| Print head | Kyocera KJ4A grey level piezo print head | ||
| Number of heads |
2-8pcs (4-7 colors optional) | ||
| Print resolution |
635x2400dpi | ||
| Print speed | 4 Pass | 6 Pass | 8 Pass |
| 72m2/h (single row); 144m2/h (double row) |
48m2/h (single row); 96m2/h (double row) |
36m2/h (single row); 72m2/h (double row) |
|
| Print width | 5000mm | ||
| Material type | Rigid and flexible material, roll to roll material | ||
| Material thickness |
Up to 50mm | ||
| Ink type | Eco-friendly UV curing ink (NO VOC) | ||
| Ink color | CMYK, Lc, Lm, W (Optional) | ||
| RIP Software | PhotoPrint, Onyx | ||
| Input format | Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI | ||
| Printer weight | 5000 KG | ||
| Printer Size | 8600mm[L] x 2300mm[W] x 1900mm[H] | ||
| Power requirement |
220V/AC (± 10%), 50/60 Hz; 8.5 KW (38A) | ||
| Working environment |
Separate, little sunlight, ventilated workshop. Temperature: 18°C ~ 30°C Humidity: 30% ~ 70% (Non-condensing) Ventilation equipment: Suggest Overhead exhaust fan, displacement 600cfm |
