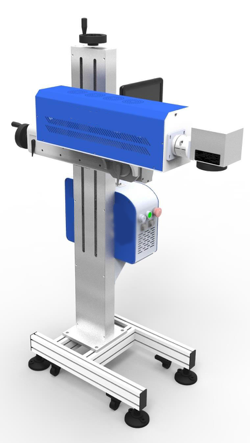

CO2 Laser

Laser power

15W / 30W

Wavelength

9.3μm /10.6μm optional

Power

AC220±10% 、50/60HZ

Positional accuracy

≤±0.5mm

Working area

70mmX70mm working distance*100mm,
90mmX90mm W D110mm, 100mmX100mm W
D150mm,140mmX140mm W D200mm

Working speed

0~8000mm/s

Gross power

<800W

Working environment

Temp: 5~35°Cͺrelative humidity:5~85%，no
condensation, no dust (less dust)

On line speed

≤120m/min

Applicable format

PLT, DXF, JPG, PNG, BMP

Boundary dimension

1200* 500 *1600mm

Gross weight

About 50k

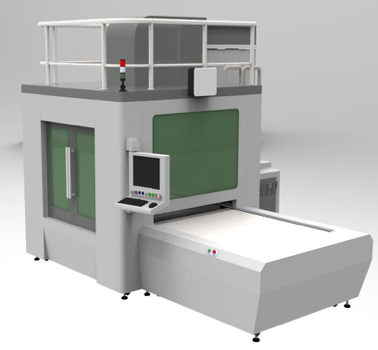

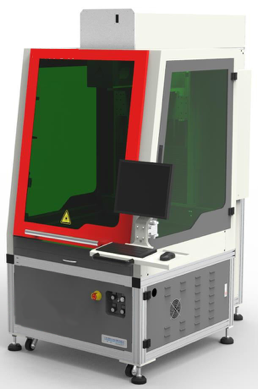

Laser Max power

350W

Wavelength

AC220±10% 、50HZ

Spot

<1.2M2

Impulse frequency

0~130KHz

Marking area

400mm×400mm~800mm×800mm

Minimum Line Width

0.2mm

Minimum Character

2mm

Speed

0~7000mm/s

Supported graphic format

AI、DXF、BMP、JPGE、PLT etc.

Voltage

AC380±10%  50/60HZ

Size of machine body

1500 x 2135x 1945

Main body

About 670Kg

Temp

5℃-40℃

Humidity

5%-85% (non-condensation)

Gross Power

<10.3Kw

Laser power

350W

Power supply

AC220±10% 、50HZ

Repeated position precision

≤±0.1mm

Working area

1500mm*1200mm

Marking speed

0~7000mm/s

Gross power

<12kW only machine

Working temperature

10℃-30℃

Working humidity

5%-65% (no condensation)

Supported graphic format

AI、DXF、BMP、JPGE、PLT etc.

Whole size

4000mm*3250mm*3000mm

Gross weight

About 500Kg
