example of application:

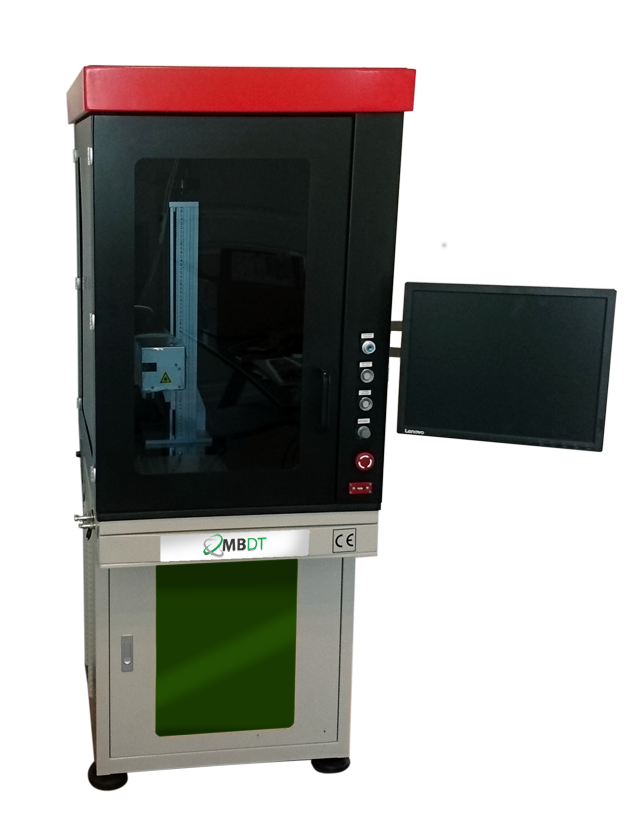

MBL-120
|
Items
|
Parameters
|
|
Laser power
|
20W/30W/50W/20Wmopa/Imported20W/
Imported30W/Imported50W
|
|
Voltage
|
AC220±10% 、50/60HZ
|
|
Reposition accuracy
|
|
|
Marking area
|
110X110 ( optional 70*70/ 175*175/200*200mm)
|
|
speed
|
0~7000mm/s
|
|
Total power
|
|
|
Temperature
|
10℃-30℃
|
|
Humidity
|
5%-85% (no condensation)
|
|
Graphic format supported
|
AI、DXF、BMP、JPGE、PLT etc.
|
|
Dimension
|
|
|
Working environment
|
No dust or less dust
|
|

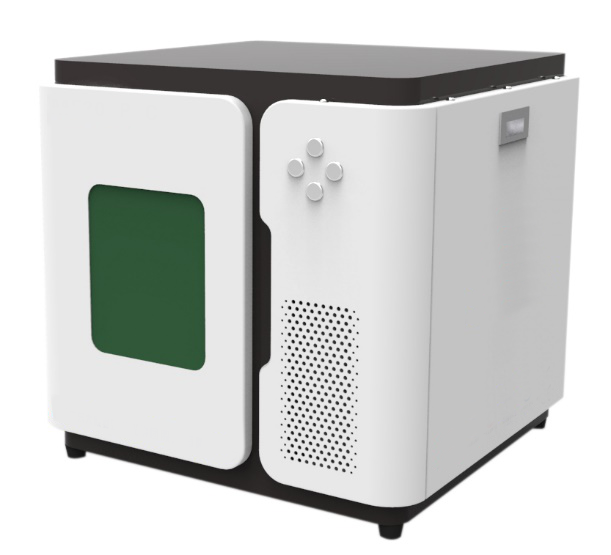

MBL-120PC Desktop
Applicable materials:
Plastic, iron, zinc alloy, copper, nickel plating metal, galvanizing metal, IC, sapphire, etc.
|
Items
|
Parameters
|
|
Laser power
|
20/30/50W (Optional)
|
|
Laser wave
|
1064nm
|
|
Cooling method
|
Air
|
|
Voltage
|
AC220±10%；50/60Hz
|
|
Reposition accuracy
|
≤±0.02mm
|
|
Marking area
|
110mm x 110mm~175mm x 175mm
|
|
speed
|
0~7000mm/s
|
|
Total power
|
<600W
|
|
Temperature
|
10℃~35℃
|
|
Humidity
|
5%-85% (no condensation)
|
|
Graphic format supported
|
AI、DXF、BMP、JPGE、PLT etc.
|
|
Dimension
|
560mm*540mm*540mm
|
|
Weight
|
About 60KG
|
|

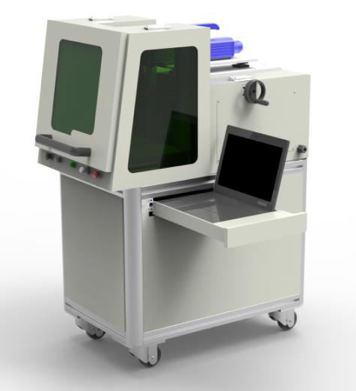

MBL-110PB (10W), MBL-120PB (20W), MBL-130PB (30W), MBL-150PB (50W)
|
Items
|
Parameters
|
|
Laser power
|
10W/20W/30W/50W
|
|
Voltage
|
AC220±10% 、50H
|
|
Reposition accuracy
|
≤±0.02mm
|
|
Marking area
|
110mmX110mm/153mmX153mm/175mmX175mm
|
|
speed
|
0~7000mm/s
|
|
Total power
|
<800W (no including auxiliary)
|
|
Temperature
|
10℃-35℃
|
|
Humidity
|
5%-85% (no condensation)
|
|
Graphic format supported
|
AI、DXF、BMP、JPGE、PLT etc.
|
|
Dimension
|
460mm*760mm*1100mm
|
|
Weight
|
About 90KG
|
|

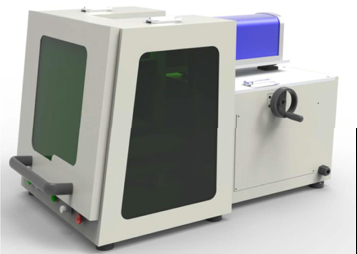

MBL-120PC
|
Items
|
Parameters
|
|
Laser power
|
20W
|
|
Voltage
|
AC220±10% 、50HZ
|
|
Reposition accuracy
|
≤±0.02mm
|
|
Marking area
|
110X110 ( optional 70*70/ 175*175/200*200mm)
|
|
speed
|
0~7000mm/s
|
|
Total power
|
<800W (no including auxiliary)
|
|
Temperature
|
10℃-35℃
|
|
Humidity
|
5%-85% (no condensation)
|
|
Graphic format supported
|
AI、DXF、BMP、JPGE、PLT etc.
|
|
Dimension
|
460mm*760mm*470mm
|
|
Weight
|
About 40KG
|
|

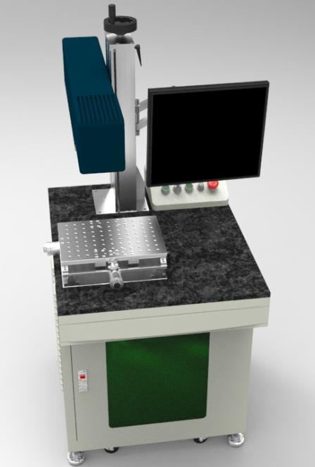

MBL-120 3DA (20W), MBL-130 3DA (30W), MBL-150 3DA (50W)
|
Items
|
Parameters
|
|
Laser power
|
20W/30W/50W/20Wmopa/Imported20W/Imported30
W/Imported50W
|
|
Voltage
|
AC220±10% 、50/60HZ
|
|
Reposition accuracy
|
|
|
Marking area
|
110X110 ( optional 70*70/ 175*175/200*200mm)
|
|
speed
|
0~7000mm/s
|
|
Total power
|
1KW
|
|
Temperature
|
10℃-30℃
|
|
Humidity
|
5%-85% (no condensation)
|
|
Graphic format supported
|
AI、DXF、BMP、JPGE、PLT etc.
|
|
Dimension
|
900 X 610 X 1450mm
|
|
Working environment
|
No dust or less dust
|
|

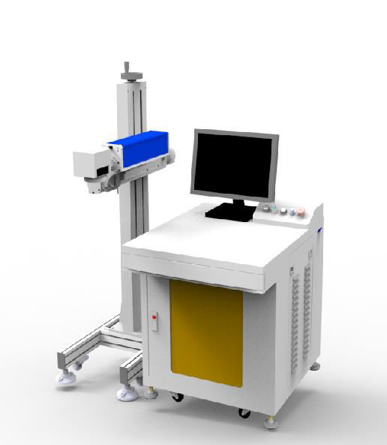

MBL-20AA (20W), MBL-10AA (10W), MBL-30AA (30W), MBL-50AA (50W)
|
Items
|
Parameters
|
|
Laser power
|
10W/20W/30W/50W
|
|
Voltage
|
AC220±10% 、50HZ/60HZ
|
|
Reposition accuracy
|
≤±0.02mm
|
|
Marking area
|
110mmX110mm/70mmX70mm/175mmX175mm/30
0mmX300mm
|
|
speed
|
0~7000mm/s
|
|
Total power
|
<800W (no including auxiliary)
|
|
Temperature
|
10℃-35℃
|
|
Humidity
|
5%-85% (no condensate)
|
|
Graphic format supported
|
AI、DXF、BMP、JPGE、PLT etc.
|
|
Dimension
|
case 650mm*850mm*750mm/ lifting frame
450mm*650mm*1250mm
|
|
Weight
|
180Kg including packing case
|
|

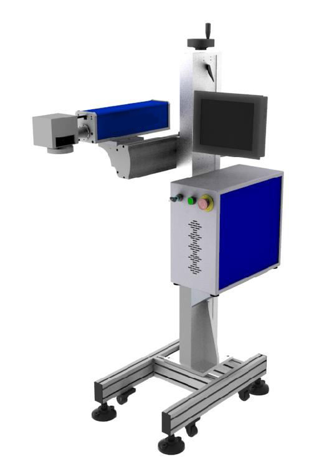

MBL-10BA (10W), MBL-20BA (20W), MBL-30BA (30W), MBL-40BA (40W), MBL-50BA (50W)
|
Items
|
Parameters
|
|
Laser power
|
10W/20W/30W/50W
|
|
Voltage
|
AC220±10% 、50HZ/60HZ
|
|
Reposition accuracy
|
≤±0.02mm
|
|
Marking area
|
110mmX110mm/70mmX70mm/175mmX175mm/30
0mmX300mm
|
|
speed
|
0~7000mm/s
|
|
Total power
|
<800W (no including auxiliary)
|
|
Temperature
|
10℃-35℃
|
|
Humidity
|
5%-85% (no condensate)
|
|
Graphic format supported
|
AI、DXF、BMP、JPGE、PLT etc.
|
|
Dimension
|
4550mm*750mm*1450mm
|
|
Weight
|
About 80KG
|
|

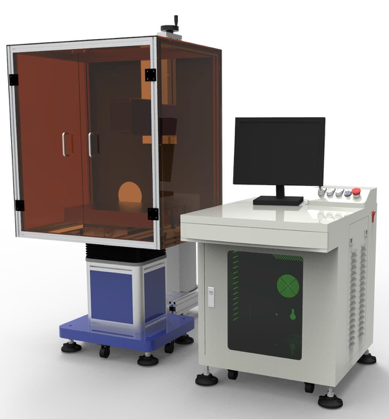

MBL-420DA (20W), MBL-430BA (30W), MBL-450BA (50W)
|
Items
|
Parameters
|
|
Laser power
|
20W/30W/50W
|
|
Voltage
|
AC220±10% 、50HZ
|
|
Reposition accuracy
|
≤±0.02mm
|
|
Marking area
|
400mm*400mm
|
|
speed
|
0~7000mm/s
|
|
Total power
|
<1000W (main body only)
|
|
Temperature
|
15℃-35℃
|
|
Humidity
|
40%-80% (non-condensation)
|
|
Graphic format supported
|
AI、DXF、BMP、JPGE、PLT etc.
|
|
Dimension
|
1500mm*1400mm*1620mm
|
|
Weight
|
Around 180KG
|
|
